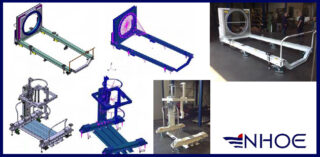

Rotating Integration Trolley
The Rotating Integration Trolley is designed to support, move and rotate the S/C during the propulsion integration operation. A slew ring allow the S/C rotation around its axes. A safety system is available for lock the system in any position. Each Rotating Integration Trolley is designed according to the mass budget, rotation angle and load cases issued by the customer.
Features
1. Rotating Integration Trolley is equipped with:
– Lifting system (optional)
– Slew ring
– Wheels
– Screw Jack
– Grounding points
– Handles
– Safety and lock system
2. Rotating Integration Trolley is equipped with flight HW or Frame HW interfaces
Rotating Integration Trolley 01
The Rotating Integration Trolley 01 is designed to support, move and rotate the Propulsion Subsystem of the S/C during its integration operation. A slew ring allow the Propulsion Subsystem rotation around its axes, and a carriage system allow to vertical translation. A safety system is available for lock the system in any position. Each Rotating Integration Trolley 01 is designed according to the mass budget, rotation angle and load cases issued by the customer.
Features
1. Rotating Integration Trolley 01 is equipped with:
– Lifting system (optional)
– Slew ring
– Carriages
– Wheels
– Screw Jack
– Grounding points
– Handles
– Safety and lock system
2. Rotating Integration Trolley 01 is equipped with flight HW or Frame HW interfaces
